Locomotive equipment, components and accessories

Ekybell  for locomotive

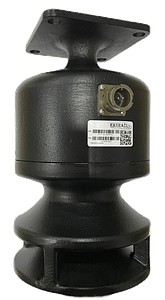

Electronic bell for locomotive Ekybell

The advanced engineering used for this design and the careful choice of the electronic components, allows this bell to operate in extreme conditions. The Ekybell can operate in continuous mode at temperatures from -50°C up to 75°C without losing a beat. (-58°F to 167°F)

Product overview Specification
Height 10.94 inches / 27.78 cm
Width 6.5 inches/16.51 cm
Weight 13.4 lbs/6.1 Kilos
Power Input 25Vdc to 85Vdc
Inrush Current 1 amp at 74Vdc for 100μs
Running Current 200ma at 74Vdc
DB Sound Output 360° 85db min
Connection Type Standard 2 pin bayonet type
Sound Type Standard locomotive Bell
Rings per minute Settable to customer needs
Default is 100 rings minute
Operating Temp +75° to -50° Celsius/167° to -58°F
Eky-air

Electronic Air Governe Eky-air

Our EKY-AIR (ELECTRONIC AIR GOVERNER) is a precise and reliable electronic air pressure detector. The output is an electronic contact with over voltage and over current protection.

Product overview Specification

Electrical

Supply Voltage Connector pin A, wire RED - POSITIVE Voltage
Connector pin B, wire BLK - NEGATIVE Voltage
Nominal 74VDC
Min. 45VDC (48V on, 43V off)
Max. 85VDC
Supply Current 7.5mA @ Nominal Voltage
Output Current 300 mA Nominal - 1A Max.
Dielectric Strenght <1 mA at 1500 Vac (1 min) or 1800 Vac (1 s)

Pressure (Factory Set as per customer requirement)

Operating Pressure 200 PSI
Over Pressure 450 PSI
Burst Pressure 1150 PSI
Total Error Band (TEB) -20ºC to 85ºC [-4ºF to 185ºF] ±1% FSS (Full Scale Span)<-20ºC, >85ºC [<-4ºF, >185ºF] ±2% FSS (Full Scale Span)

Environmental

Operating Temp. Range -40ºC to 125ºC [-40ºF to 257ºF]
Storage Temp. Range -40ºC to 125ºC [-40ºF to 257ºF
Compensated Temp. Range -40ºC to 125ºC [-40ºF to 257ºF
Accuracy Best Fit Straight Line ±0.25%FSS
Life 10 million full scale pressure cycles over the calibrated pressure range

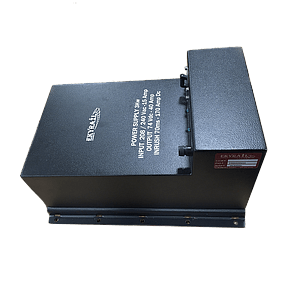

Power supply 3 KW Input 208/240 VAC

Power supply 3 KW Input 208/240 VAC

3kVA power supply, input 208/240 Vac, 15A, output: 74 Vdc 40A, inrush capacity for 70ms of 170A.

Ekyshock

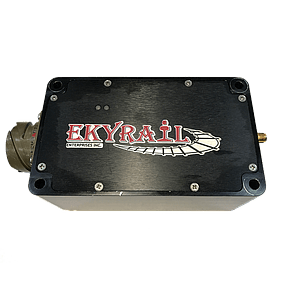

Mechanical shock data logging system Ekyshock

The Ekyshock is a stand-alone mechanical shock data logging system. The device measures 3-axis acceleration, temperature, humidity, GPS position, velocity & time. Software application allows remote operations including programming, download and data analysis.

Product overview Specification
  • 3-Axis (X, Y, Z) MEMs Accelerometer
  • Sensitivity 50mG, Range 200G
  • GPS Based GMT Time Reference
  • Latitude/Longitude +/- 2.5m
  • Velocity +/- 0.1m/s
  • Temperature
  • Relative Humidity
  • >3700 Event Recordings stored
  • Adjustable Interval Recordings
  • Shock Event Driven recordings with adjustable Threshold and Filtering
  • FIFO based memory allows for perpetual recording with most recent data always available
  • Software Application allows user to remotely Program Device, Download and Analyze data
  • Externally Powered (AC or DC)
  • Rechargeable Battery Backup rated up to 2000 charge cycles
  • USB Connectivity with optional RS232
True speed calibration unit (TSCU)

True speed calibration unit (TSCU)

The TSCU is a module that is inserted between the axle speed pickup and the locomotive speed indicator. The TSCU uses the Global Positioning System (GPS) signals to generate a speed signal correction factor that automatically corrects the speed indicator signal thus providing an exact speed indication regardless of wheel wear.

Product overview Specification Manual
Input supply 45 to 120Vdc
Backup Time in Power outage 10 seconds
Input pulse maximum frequency 4kHz
40 or 42 po Wheel Size Selection
Output Pulse Voltage Selection 5V, 10V and 15V
Operating Temperature -40 to +70°C
Shock ±80g any axis
Input Pulse Minimum Voltage ±1.0Vpp
Input Pulse Maximum Voltage ±15Vpp

Radio

Frequency 2.4GHz
Sensibility -100 dBm
Output Power 3 dBm

GPS

Sensibility -161 dBm
Maximum Acquisition Time 26 seconds

CPU

Frequency 32 MHz
Flash 32K
Ram 10K
External Memory 256K
